QuickForm Reference¶

Background¶

Data-entry forms in CiviCRM use an extended variation of PEAR's HTML_QuickForm system. In QuickForm, a web developer defines a new form by creating a "Form" class which implements certain methods (such as "buildForm") and which calls methods to add new form fields (or "elements"). Reference materials for the main QuickForm system can be found online:

The Basics¶

A typical form in CiviCRM looks like this:

class CRM_Example_Form extends CRM_Core_Form {
  /**
   * @var string - Note make variables public to allow form hooks access
   */
  public $_foo;

  /**
   * This function is called prior to building and submitting the form
   */
  public function preProcess() {
    // Perform any setup tasks you may need
    // often involves grabbing args from the url and storing them in class variables
    $this->_foo = CRM_Utils_Request::retrieve('foo', 'String');
  }

  /**
   * Will be called prior to outputting html (and prior to buildForm hook)
   */
  public function buildQuickForm() {
    // Add elements to the form
    $this->add('text', 'my_text_field', ts('Enter Some Text'));
  }

  /**
   * If your form requires special validation, add one or more callbacks here
   */
  public function addRules() {
    $this->addFormRule(array('CRM_Example_Form', 'myRules'));
  }

  /**
   * Here's our custom validation callback
   */
  public static function myRules($values) {
    $errors = array();
    if ($values['foo'] != 'abc') {
      $errors['foo'] = ts('You entered the wrong text!');
    }
    return empty($errors) ? TRUE : $errors;
  }

  /**
   * Called after form is successfully submitted
   */
  public function postProcess() {
    // get the submitted values as an array
    $vals = $this->getSubmittedValues();
    // Save to the database
    civicrm_api3('foo', 'create', $vals);
  }
}

Retrieving values from the form¶

In general you should stick to using functions tagged with @api to get functions from forms if you are accessing them from outside the form.

The preferred methods to get the submitted values are $form->getSubmittedValues and $form->getSubmittedValue(). These methods will pass any fields identified as money fields through a function to remove money formatting. Note that accessing ->_submitValues directly is the same as checking $_POST - it bypasses any security.

In addition we try to add standard functions to core forms to get ids

ie
getEventID()
getParticipantID()
getContactID()
getContributionPageID()
getContributionID()
getPriceSetID()
getDiscountID()

And more recently in some forms - getContactValue() - getParticipantValue() - getEventValue()

builQuickForm v buildForm

In CiviCRM Core, sometimes in sub classes e.g. in the Custom Search Sub classes, the function buildForm is used instead of buildQuickForm, However there will be a call in the parent function for buildQuickForm which then includes the subClasses buildForm. This is not standard for new form classes.

Form Elements¶

Basic Types¶

These basic elements can be added using CRM_Core_Form()->add()

Type	Notes
text	Simple text box
textarea	Multirow text region. Good for fields like description
select	give it css class "crm-select2" to add select2 widget
advcheckbox	like "checkbox" element but normalizes data in postProcess
radio	Radio options
group	mainly useful to contain radios, see addRadio extended method
hidden	does not need to be added to the template
advmultiselect	takes up a lot of space - consider using select.crm-select2
submit	Buttons generally used to either submit or cancel the form
password	Add a password field. The display will be replaced with dots

Extended Types¶

CRM_Core_Form includes methods to add special types or sets of form elements not included in basic quickform. See code-level function documentation for details.

Method	Used For	Notes
addButtons	form submit buttons
addRadio	set of radio buttons
addYesNo	radio buttons with preset 'Yes' & 'No' options
addCheckbox	set of checkboxes
addDateRange	set of "to" and "from" dates	requires an extra template to be included
addSelect	autogenerate a select, fetching title and option list from metadata	uses "select2" widget. also adds an "edit options" button visible to admin users note: to add a select2 that references an entity, see addEntityRef* below*
addProfileSelector	widget by which users can select, create and edit a profile form	requires extra javascript files added using `CRM_Core_Resources`
addSelectOther	select or other option	requires extra javascript in the template
addUploadElement	file upload
addCurrency	select currency
addMoney	money field + select currency
addEntityRef	autocomplete select of contacts, tags, events, etc.	EntityRef documentation

Deprecated Form Elements¶

Method	Was Used For	Notes
~~addDate~~	Datepicker Element	Use `$form()->add('datepicker', ...)` instead.
~~addDateTime~~	Datepicker with time Element	Use `$form()->add('datepicker', ...)` instead.
~~addWysiwyg~~	Rich text Area	Removed: Use `$form()->add("wysiwyg", ... )` instead.
~~addCountry~~	Country Select Field	Removed. Use AddSelect instead or addEntityRef

Request Lifecycle¶

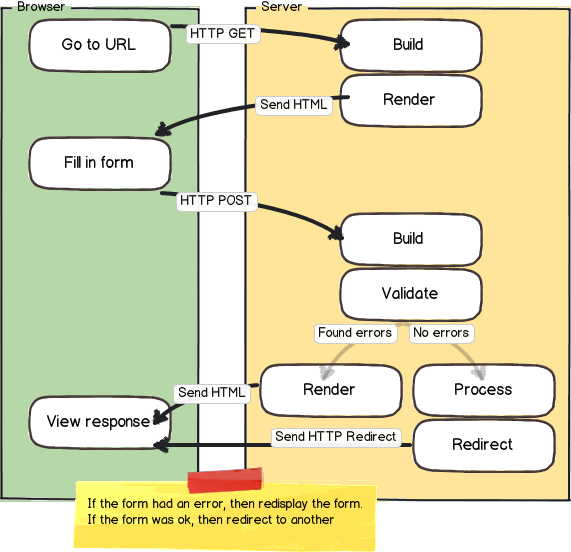

CiviCRM provides a more nuanced request lifecycle than traditional HTML_QuickForm. This extended request lifecycle allows the original web developer to create the form using a class – and allows third-party developers to modify the form using hooks. The request lifecycle is divided into a few phases, and each phase may have multiple steps. The phases and steps are presented in sequence:

Build Phase¶

Generate a set of HTML form fields ($form->addElement(), $form->add(), etc) and validation rules ($form->addFormRule()) to the form. (Note: The "Build" phase runs during the initial GET request and the subsequent POST request.)

Step	Audience	Comments
`CRM_Core_Form::preProcess` (override)	Original Developer	In any subclass of `CRM_Core_Form`, the `preProcess()` function can be overridden.
`CRM_Core_Form::buildQuickForm` (override)	Original Developer	In any subclass of `CRM_Core_Form`, the `buildQuickForm()` function can be overridden.
hook_civicrm_buildForm	Third-Party Developer
`CRM_Core_Form::addRules` (override)	Original Developer	In any subclass of `CRM_Core_Form`, the `addRules()` function can be overridden.

Validate Phase¶

Examine submitted form data to determine validity. (Note: The "Validation" phase runs during the POST request.)

Step	Audience	Comments
(Process rules)	Original Developer & Third-Party Developer	Iteratively process any rules added during the "build" phase (i.e. call any callbacks registered via `$form()->addFormRule()`).
hook_civicrm_validate	Third-Party Developer	(Note: This is similar to `hook_civicrm_validateForm` but older)
hook_civicrm_validateForm	Third-Party Developer	(Note: This is similar to `hook_civicrm_validate`; added in CiviCRM v4.2)

Process Phase¶

Save the data, execute business logic, etc. (Note: The "Process" phase runs during the POST request – but only if the "Validation" was successful)

Step	Audience	Comments
`CRM_Core_Form::postProcess` (override)	Original Developer	In any subclass of `CRM_Core_Form`, the `postProcess()` function can be overridden.
hook_civicrm_postProcess	Third-Party Developer

Render Phase¶

Generate HTML using Smarty.

Note

The "Render" phase does not provide events or hooks to the PHP controller.
